Description

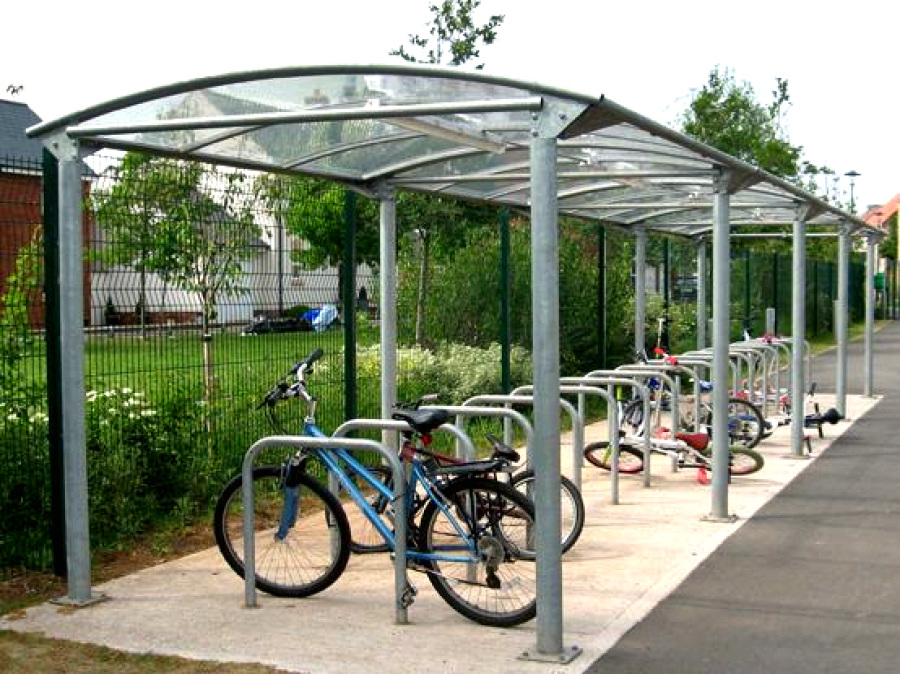

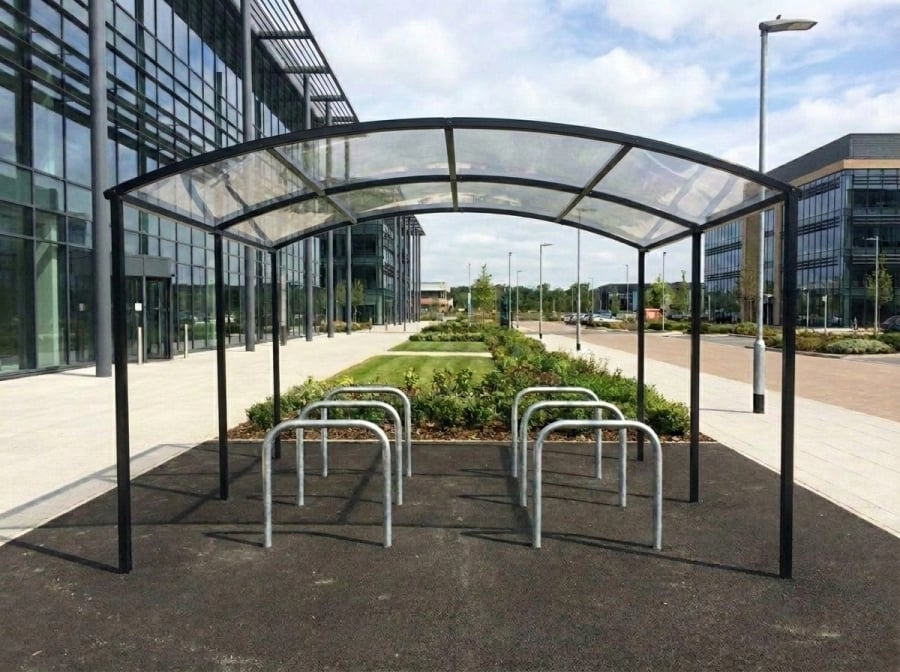

The new Bolton Cycle Shelter is suitable for all types of locations from schools to retail parks. The strong aesthetically pleasing bike shelter offers a practical solution to bike storage and a variety of other applications.
Specification
- 3300mm overall length
- 2460mm overall depth
- 2100mm overall height
- Uprights made of 101mm tube, roof frame made of 64mm tube
- Galvanised finish as standard
- Roof sheets are clear view PET 5mm thick sheeting
- The main bay can accommodate up to 8 bikes with 4 Sheffield cycle stands (not included). Extensions bays also available.
Installation
Supplied in component form for easy installation on site. Cladding/roofing needs to be fixed on site. Sheeting is clamped to frame using clamping strips. Legs can be flanged for bolting down to a suitable concrete base (400 cube minimum) or with ragged ends for casting into the ground.
Ground fixing bolts can be supplied extra. Flanged version: 16 16mm bolts required per flanged main bay, 8 per flanged extension bay Ragged version: Excavate a hole 500mmx500mmx400mm deep for casting in each end.
Delivery time:14 - 21 working days
